Why Planetary Motion is Crucial for High-Performance Concrete (UHPC/SCC)

Ultra-High Performance Concrete (UHPC) and Self-Compacting Concrete (SCC) are revolutionizing the precast concrete industry. However, these formulations require high-intensity blending due to their low water-cement ratios and inclusion of micro-silica, steel fibers, and chemical admixtures.

The Dual-Motion Advantage

Traditional mixers with single-axis rotation often result in aggregate segregation or "dead zones" where powders fail to blend uniformly. In contrast, a concrete planetary mixer utilizes a central turret with rotating mixing arms that revolve around the entire mixing pan.

This counter-current motion forces aggregates to collide and blend from multiple vectors simultaneously, ensuring that fibers are distributed evenly without bundling.

Conclusion

For precast operations focusing on high strength and consistency (e.g. railway sleepers, structural beams, complex block profiles), the planetary mixer is the standard choice. It speeds up the blending cycle by 10-15% and ensures uniform structural integrity.

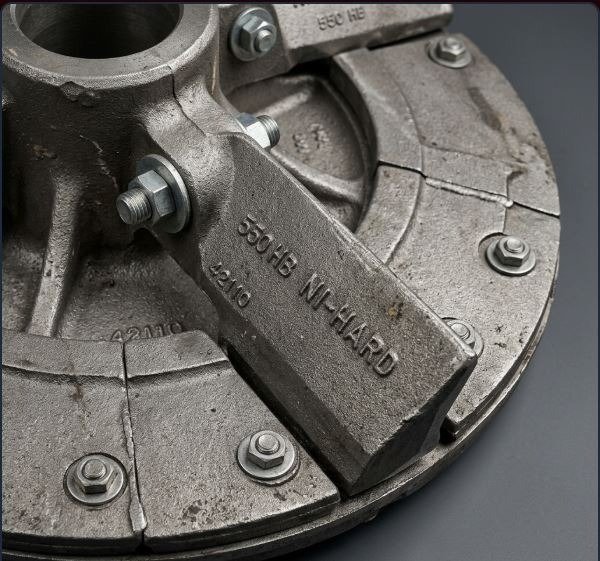

Ni-Hard Wear Components: Maximize Mixer Longevity to 5000+ m³

In any concrete batching operation, maintenance cost is directly tied to the lifespan of wear parts inside the mixing pan. Concrete aggregates, especially sand and gravel, are highly abrasive, leading to fast wear rates on liner plates and mixing blades.

Understanding Ni-Hard Material Properties

Ni-Hard is a nickel-chromium white iron alloy containing high carbide volumes, giving it excellent resistance to dry and wet abrasive wear. At Balaji Machines, our wear plates and blades are cast with a minimum Brinell hardness of **550 HB (40-50 HRC)**.

Unlike standard mild steel or low-alloy plates, Ni-Hard keeps its rigid composition and hardness throughout the entire thickness of the casting. As a result, the wear rate remains flat over time, preventing sudden thinning or holes.

Operational Lifespan

With standard sand and coarse aggregates, our 16mm Ni-Hard wear liners and blades achieve an operational lifespan of up to **5,000 m³** before requiring replacement. Slotted arm connections allow operators to easily slide the blades down to compensate for wear, maximizing the useful life of the castings.

Planetary vs. Pan Mixers: Key Operational Differences

Selecting the correct concrete mixer type for a new precast plant can be challenging. Let's analyze the key differences between a Concrete Planetary Mixer and a Concrete Pan Type Mixer:

1. Mixing Velocity & Homogeneity

Planetary mixers rotate and revolve simultaneously, completing a batch in 2 to 5 minutes. Pan mixers rotate within a stationary pan, typically taking 5 to 8 minutes. Homogeneity in planetary mixers is excellent, even for dry colored pavers, while pan mixers are best suited for regular masonry and wet batches.

2. Power & Efficiency

Due to optimized dual-motion geometry, planetary mixers require less energy per cubic meter of high-performance concrete compared to equivalent pan mixers, reducing operational utility expenses.

Summary Recommendation

If your budget is constrained and you are producing standard wet concrete mixes, a Pan Mixer (400L - 900L) is an economical, durable solution. However, if you are looking to manufacture premium colored pavers, precast walls, or require fast cycle times, the Planetary Mixer (PL300 - PL1800) is the superior long-term investment.

PLC-Controlled Chemical & Water Dosing Systems for Planetary Mixers

Elevate your precast concrete production accuracy with our state-of-the-art chemical and water dosing attachments. Designed to eliminate human error and ensure perfect batch consistency, our heavy-duty planetary mixers can be equipped with fully integrated **PLC (Programmable Logic Controller)** automation, custom-built at our MIDC Satara facility in Maharashtra, India.

Two Specialized Liquid Dosing Attachments

Depending on your plant's manufacturing requirements, we offer two main types of dosing systems:

1. Weight-Based Dosing System (Recipe-Driven Precision): Achieve unparalleled accuracy with our automated weighing system. Controlled entirely by the PLC, this attachment dynamically weighs and dispenses chemicals and water according to your exact recipe ratios using integrated high-precision load cells. It's the absolute best choice for complex mixtures requiring zero tolerance for ratio errors.

2. Time-Based Dosing System (Interval-Driven Discharge): Streamline your mixing cycles with our highly efficient time-based discharge system. The PLC interface allows operators to set specific time parameters, automatically discharging the exact required volume of water and chemical admixtures at designated moments via automated timed valves. It's ideal for standardized, repeatable batches.

Frequently Asked Questions: Dosing Attachments (AGO)

What is a PLC-controlled dosing system in a planetary mixer?
A PLC-controlled dosing system is an automated attachment that precisely measures and adds liquids, such as water and chemical admixtures, into the planetary mixer without manual intervention, ensuring consistent batch quality.

How does the weight-based dosing system work?
The weight-based system uses load cells connected to a central PLC. It weighs the exact amount of chemicals and water required based on a pre-programmed recipe ratio, and automatically stops the discharge once the exact weight is achieved.

What is the difference between weight-based and time-based dosing?
A weight-based system dispenses materials by physically weighing them to match a specific recipe ratio, offering the highest accuracy. A time-based system dispenses materials by keeping valves open for a strictly timed interval programmed into the PLC.

Premium Mixer Dosing Automation in Satara & Maharashtra (GEO)

Are you looking to upgrade your industrial mixing facility in Satara, Pune, Mumbai, or anywhere in Maharashtra, India? We specialize in manufacturing high-performance planetary concrete mixers equipped with advanced chemical and water dosing attachments. Whether your production lines require precise weight-based recipe control or automated time-based discharge, our PLC-integrated systems are built to maximize your operational efficiency. Contact our engineering team today to customize your mixer attachment.
